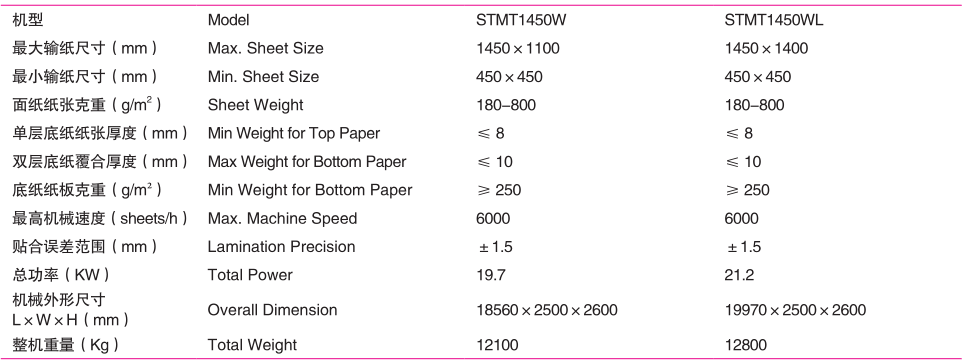

Specifications

 Note:If other specifications are needed, customizations are available.Specifications are subject to change without notice for improvement.

 Performance of The Machine

01. STMT-W Series Automatic Multi-ply Flute Laminator could do three in one lamination and also could do the lamination of single layer with cardboard paper. The machine is composed by top paper feeding unit，top paper transferring unit, top paper positioning unit，upper and lower bottom paper feeding unit, upper and lower bottom paper positioning unit, harmonic gear, two gluing system and press-conveyor unit.
02. The feeding unit enables top paper move into delivery roller smoothly. The movement of top paper mainly depends on the belt with the top pressure wheels to ensure paper feeding successfully.
03. The side lay positioning system for top paper ensures the transfer accuracy before lamination.
04. The bottom paper feeding unit mainly depends on suction belt to make the corrugated paper go into bottom paper positioning unit smoothly.
05. In bottom paper positioning unit, when the pusher push paper ahead, it also assures the bottom paper feeding accuracy.
06. The gluing system supplies glue on the bottom paper to ensure the lamination of top paper and bottom paper.
07. The conveyor unit presses the top paper and bottom paper after gluing to get a good lamination.
