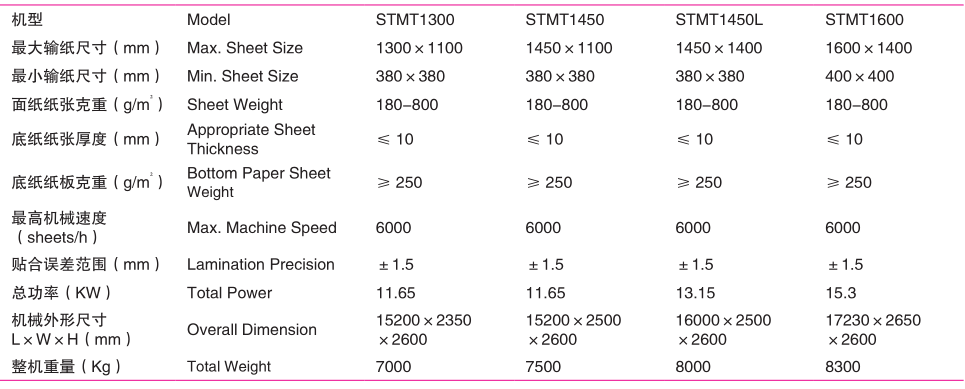

Specifications

Note:If other specifications are needed, customizations are available.Specifications are subject to change without notice for improvement.

Performance of The Machine

01. STMT Series Automatic Back-lay Flute Laminator adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system, which can make this series of machine fit for a larger range of paper with high precision, while remaining the features of easy operation and maintenance.
02. The core designed rubber roller together with knurled steel roller can enhance the evenness of gluing, strength of stickiness, as well as lowering the production cost.
03. Balance-tested rollers, tight assembling technique, plus tooth belt driving mechanic system can make the machine run at low noise with high precision.
04. The machine adopts automatic glue supply，recyclable glue circulating and auto-central oil supply system，which can greatly reduce the labor intensity and improve the production efficiency.
05. Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all from worldwide famous brands or well-known Chinese brands.
06. All materials bought from outside are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.
07. The bottom sheet for this machine can be A, B, C, E, F flute, 3 or 5 ply corrugated sheet as well as cardboard not less than 250gsm. The range for top paper can be 180-800 GSM sheet or 3 ply laminated board. It has top paper advance or alignment function.
